Aluminum Square Corner Tile Trim

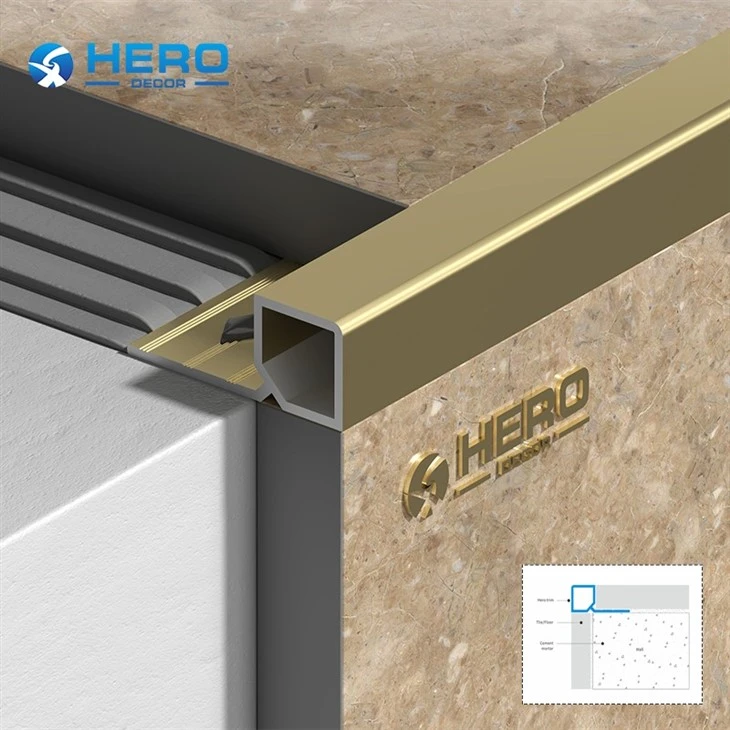

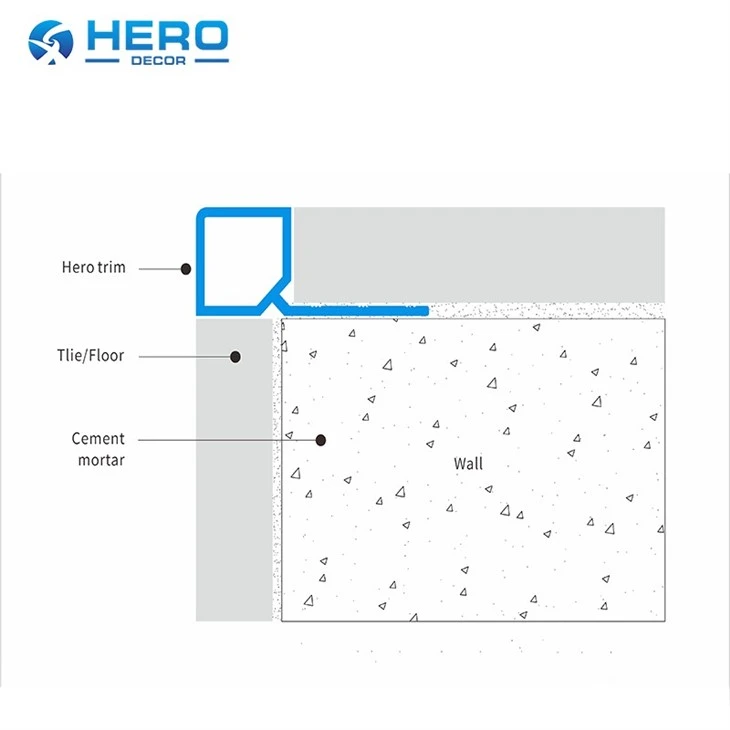

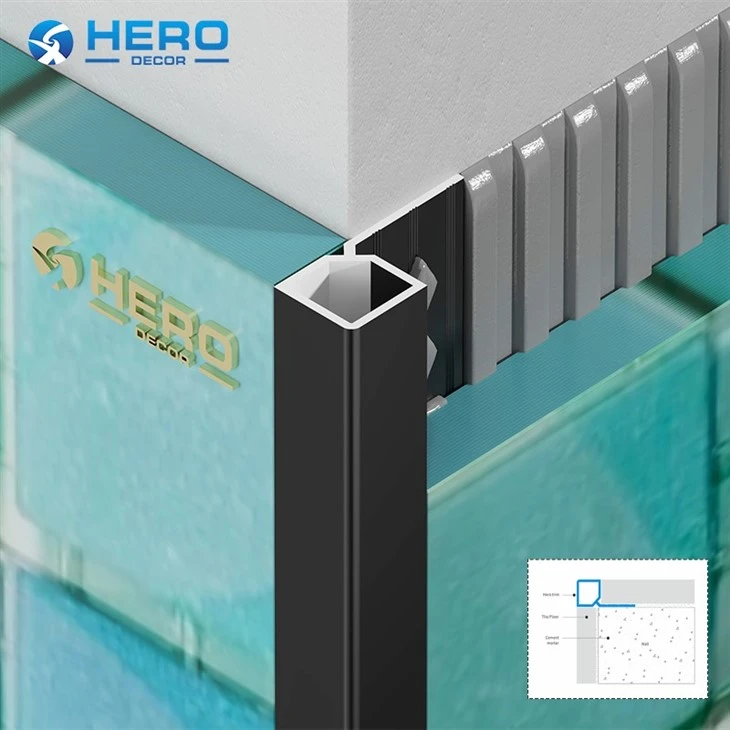

Our aluminum square corner tile trim (also known as box trim or square edge profile) is engineered to provide a bold, contemporary box-style finish for tiled walls, outer corners, and structural columns. Manufactured from premium 6063-T5 structural-grade aluminum, this profile features a crisp 90-degree symmetrical design that completely encloses the raw edge of ceramic or porcelain tiles.
Material: Virgin 6063-T5 Aluminum Alloy
Size: 2.44M,2.5M,2.7M,3M
Punching: Round,Triangle,Suqare,Customizeble
Color: Gold/ Black / Silver/ Rose Gole / Champagne / Bronze / White / Customized
Lead Time:15 - 25 Days
Quotation Terms: EXW,FOB,CIF
MOQ: 500 Pcs / Mold
Description

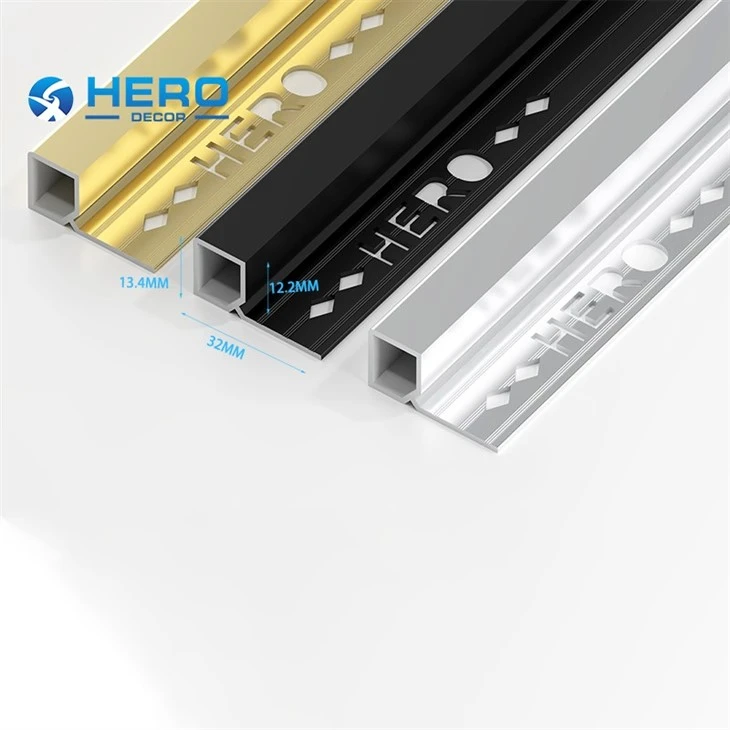

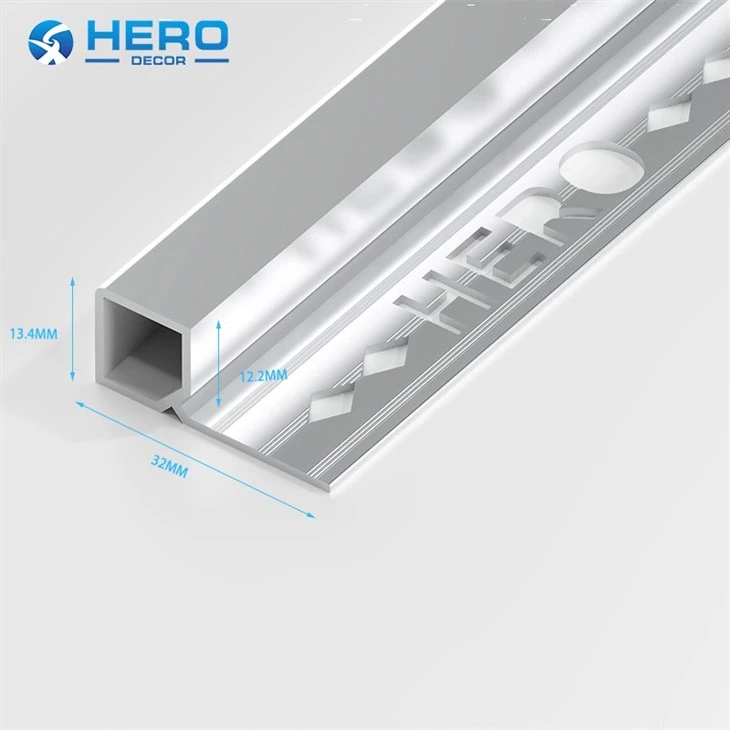

aramenters of Aluminum Square Corner Tile Trim
| drawing |  |
 |
 |
 |
 |
 |
| Code | HM-b-015 | HM-b-016 | HM-b-017 | HM-b-063 | HM-b-064 | HM-b-065 |
| h (mm) | 8 | 10 | 12 | 8 | 10 | 12 |
| weight (kg/m) | 0.112 | 0.122 | 0.132 | 0.121 | 0.132 | 0.143 |
Customization Finishes
Crafted from premium aluminum materials, our square tile edge trim is available in a wide range of sizes, colors, and finishes.
Technical Specifications
| Products material | Aluminum Alloy 6063-T5 | Tile Thickness | 8mm, 10mm, 12.5mm, 15mm (Customizable) |
| Colour | Gold/ Black / Silver/ Rose Gole / Champagne / Bronze / White / Customized | Length | 2.44m/ 2.5m/ 2.7m/ 3m/ Customized |
| Surface Treatment | Anodizing Oxidation / Powdercoating / Glitter shiny | Project Solution | Graphic design, 3D model design, Others |
| Extrusion Machine | 600-3600 tons total 6 extrusion lines | Supply Capacity | 5000,000 Pcs / Month |
|
Deep Processing |
CNC Extrusion / Cutting / Punching / Inspection / Tapping / Drilling / Milling |
Payment Term | T/T, L/C, Trade Assurance |
| Packaging | Protective film + Shrink wrap + Export carton | Delivery Time | 7-25 Days |
Aluminum Square Corner Tile Trim: Modern Geometry & Robust Edge Protection
The aluminum square corner tile trim (also known as box trim or square edge profile) is engineered to provide a bold, contemporary box-style finish for tiled walls, outer corners, and structural columns. Manufactured from premium 6063-T5 structural-grade aluminum, this profile features a crisp 90-degree symmetrical design that completely encloses the raw edge of ceramic or porcelain tiles.
Key Functional Advantages
- Symmetrical 90° Box Geometry: The precise square profile creates a clean, architectural line that balances modern design with maximum corner protection. The dual-sided containment walls ensure the tile edges are fully shielded from three directions.
- 6063-T5 Structural Rigidity: Extruded from virgin aluminum billets and tempered to T5 hardness, these trims provide exceptional resistance to bending and crushing. They maintain perfect vertical alignment even on long, multi-story wall installations.

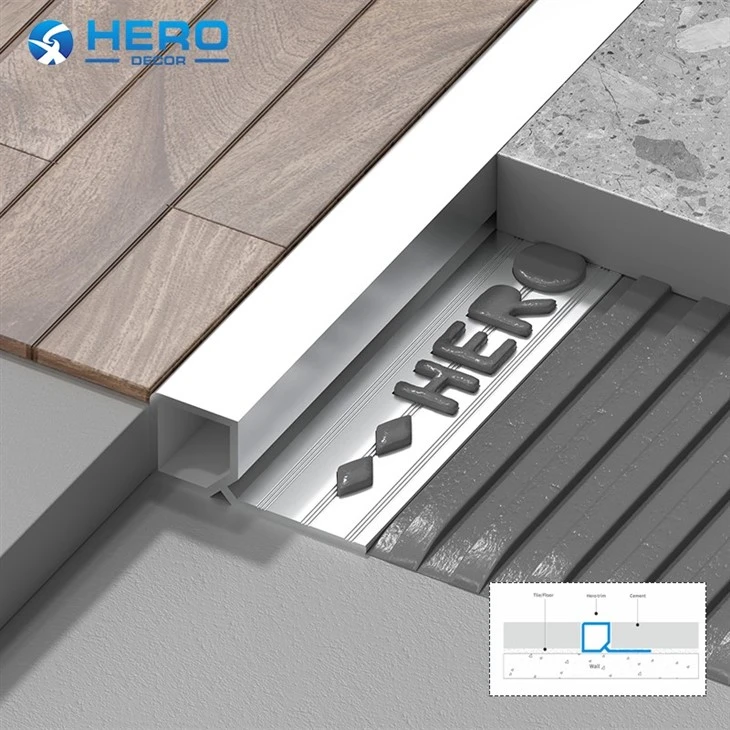

Other Shapes of Aluminum Square Tile Trim
As a high-capacity aluminum extrusion manufacturer, we supply global tile distributors, building supermarkets, and architectural material wholesalers with precision-engineered square trims. This solution eliminates the need for fragile 45-degree tile mitering while offering superior impact defense in high-traffic commercial and residential spaces.
Free Sample is Available
Contact us today for free samples, custom OEM solutions, and competitive bulk pricing.
A variety of sample display methods are available
Sample key ringon
Aluminum series sample barrel
Brass series sample barrel
Packing and shipping
Hero Metal's packaging (such as pallet materials and configuration) and transportation (such as transportation routes) can be customized according to customer needs, ensuring that the product is safe and efficient during transportation and storage.
FAQ
What materials are available for corner square tile trim?
Square Tile Trim comes in various materials, including aluminum, stainless steel, and PVC. Each material is suitable for different environments and needs.
What is the benefit of a square/box profile over a traditional round/jolly profile?
Square profiles offer a much sharper, minimalist aesthetic that complements modern large-format tiles and contemporary interior design trends. Structurally, the flat surface of the box profile distributes impacts more evenly across the corner, offering superior protection against chipping.
Can you customize the height (internal depth) for heavy-duty commercial porcelain slabs?
Absolutely. As a direct manufacturer with an in-house tooling division, we can quickly open custom extrusion dies to accommodate any non-standard tile or stone thickness up to 20mm based on your technical architectural drawings.
