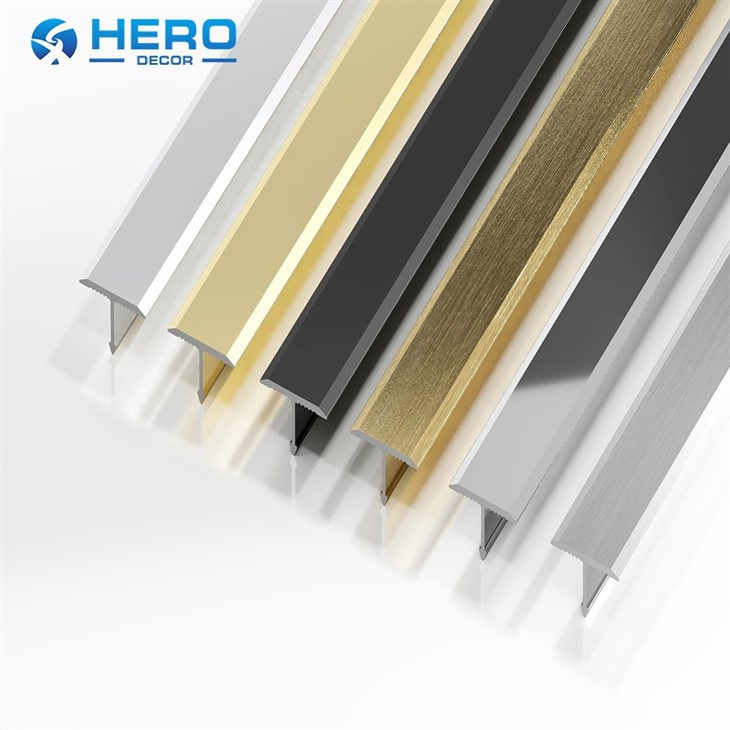

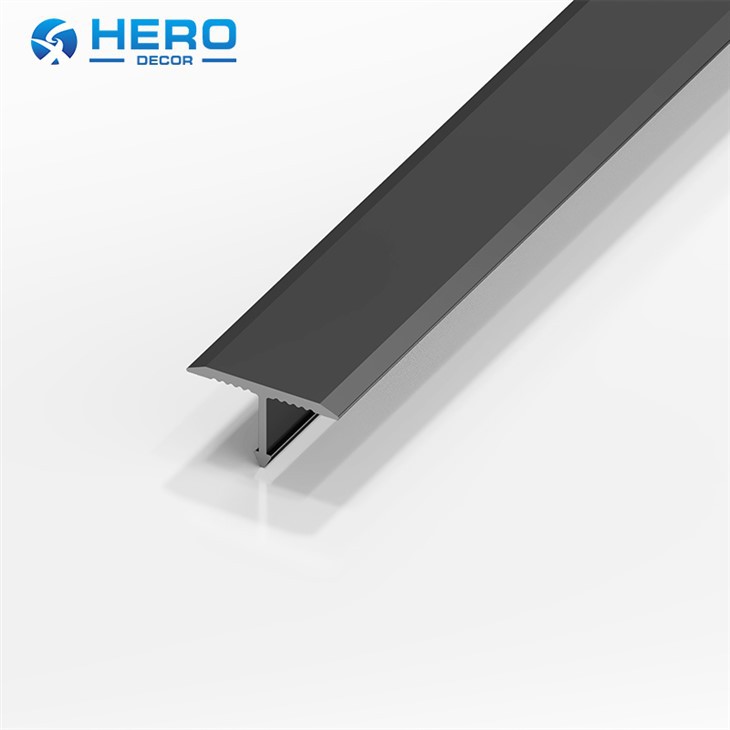

Tile T Molding
Tile T Molding is an aluminum transition profile specifically engineered for connecting two tiled surfaces of the same finished height. It is designed to cover expansion gaps, ensure smooth visual continuity, and protect tile edges from mechanical stress in both residential and commercial flooring installations.
Length: 2.5M, 2.44M, 3M
Punching: Round, triangle or customized
Color: silver, gold, rose gold, champagne and painting color
MOQ: 500PCS each design each color
Lead Time: 15 - 25 Days
Quotations: EXW, FOB, CIF, EXW
Description
Tile T Molding – Aluminum Transition Profile for Professional Tile Flooring Systems
Manufactured from high-grade aluminum alloy, tile T molding provides long-term structural stability, precise fit, and a refined architectural finish, making it an essential component in modern tile flooring systems.
|
Material |
Aluminum alloy (6063-T5 or equivalent) | Thickness | 0.6mm-1mm/Customized |
| Surface finishes | Anodized Silver, Brushed Aluminum, Matte Black, Champagne, Custom Colors | Length | 2.44m/ 2.5m/ 2.7m/ 3m/ Customized |
| Surface treatment | Water plating/ Vacuum plating/ Electroplating | Profile Type | T molding for tile flooring |
| Installation method | Embedded In Tile Adhesive During Tile Setting | MOQ | 500 Pcs/Mold |
| Application | Tile Floors, Corridors, Doorways, Open-plan Spaces | Delivery Time | 7-25 Days |
product key technologies
Structural Function and Performance
The T-shaped cross-section is designed to be anchored within the joint gap while spanning across adjacent tile edges. This structure allows the profile to absorb minor horizontal movement caused by thermal expansion, substrate shrinkage, or installation tolerances, reducing stress concentration at the tile edges.
Key Features
- Extruded aluminum alloy profile with consistent dimensional accuracy
- Designed for tile-to-tile transitions at equal heights
- Covers expansion joints while allowing controlled movement
- Protects tile edges from chipping, cracking, and impact damage
- Slim, low-profile design for modern architectural aesthetics
- Compatible with ceramic tile, porcelain tile, stone, and large-format tiles
Other Products of t moulding transition strip
Compared to plastic or composite alternatives, aluminum T moulding transition strips offer superior durability, impact resistance, and dimensional stability. They maintain their shape and surface finish over time, even in high-traffic environments.
Sample is available
Hero Metal manufactures aluminum tile trims with a focus on structural reliability, surface quality, and long-term performance. Compared to plastic alternatives, aluminum T shaped trims offer superior load resistance, dimensional stability, and aesthetic consistency over time.
A variety of sample display methods are available
Sample key ringon
Aluminum series sample barrel
Brass series sample barrel
About Hero Metal
Hero Metal is a professional manufacturer specializing in aluminum architectural decorative profiles, including tile trims, floor transition strips, skirting systems, stair nosing, and expansion joint solutions. With in-house extrusion, surface treatment, and quality control systems, we supply stable, cost-effective products to global construction and decoration markets.
Everything You Need to Know
Is this T moulding suitable for heavy foot traffic areas?
Yes, the aluminum alloy structure provides excellent load resistance and wear performance, suitable for commercial and public spaces.
Can it be used with different flooring materials?
Yes, it is compatible with tile, wood, laminate, SPC, and other equal-height flooring systems.
Does the profile allow for floor expansion?
Yes, the T-shaped design covers the expansion gap while allowing controlled movement between floor sections.
What is the gap for T-molding?
Install the flooring planks including the underlayment by leaving a 1" inch (25mm) gap for the installation of the T-molding. Gently press the molding into the adhesive and adjust to make sure it is straight.
